概 述

SCB1250 系列非晶合金樹脂絕緣干式配電變壓器是我公司為創建節能型社會而推出的新節能產品。該 產品采用新一代鐵心材料一非晶合金，非晶合金特點是單位損耗小，在相同的磁密下，非晶合金鐵 心的單位耗損為硅鋼片的25%，節能效果好。非晶合金樹脂絕緣干式配電變壓器繼承環氧樹脂澆注干 式變壓器的特點。

產品特點：

1、空載損耗低，節電效果好。

2、使用場所靈活，可與預裝式變電站配套或安裝在配電變壓器。

3、阻燃、防爆、無污染、免維護，可無人值守。

4、動、熱穩定度好，抗短路、耐雷電沖擊。

5、線圈全密封結構不吸潮、不吸塵、局部放電量低于10PC，運行安全。

6、按用戶的需要配有溫度顯示、溫度控制系統，可與軸流風機配合使用。

summary

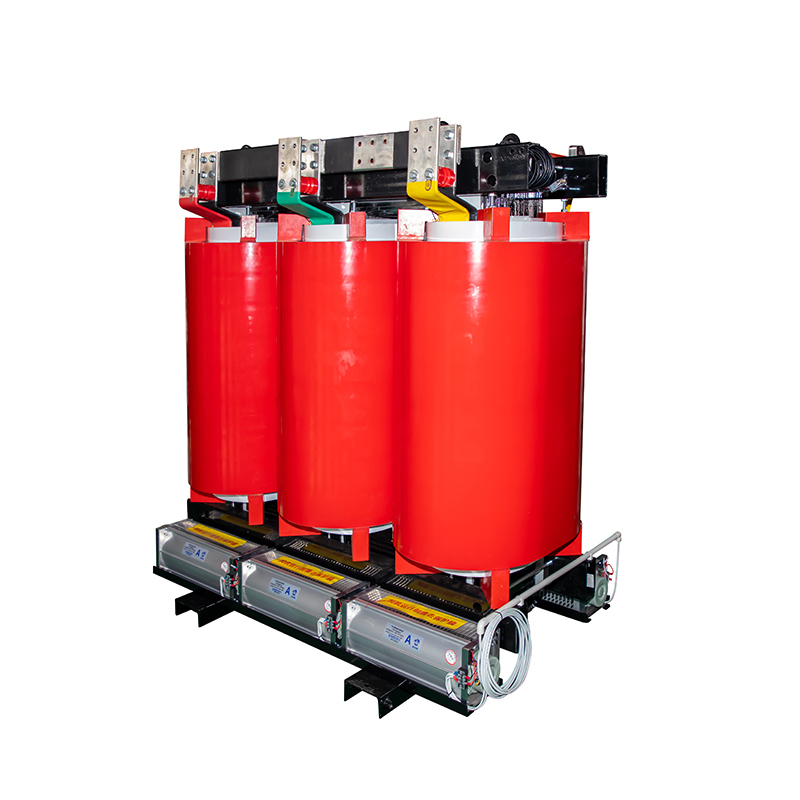

SCB1250 series amorphous alloy resin insulated dry-type distribution transformer is a new generation of energy-saving products launched by our company to create an energy-saving society. This product uses a new generation of core material - amorphous alloy. The most notable feature of amorphous alloy is low unit loss. Under the same magnetic density, the unit loss of amorphous alloy core is only 25% of that of silicon steel sheet, and the energy-saving effect is very significant. Amorphous alloy resin insulated dry-type distribution transformer inherits all the advantages of epoxy resin cast dry-type transformer and is the key recommended product for urban power grid reconstruction.

Product features:

1. With low no-load loss and good power saving effect, it is the distribution transformer with the most economical operation cost at present.

2. The use site is flexible, and can be matched with the prefabricated substation or installed in the distribution transformer.

3. Flame retardant, explosion-proof, pollution-free, maintenance-free, and unattended.

4. High dynamic and thermal stability, resistance to short circuit and lightning shock.

5. The fully sealed structure of the coil does not absorb moisture and dust, and the local discharge capacity is less than 10PC, so the operation is safe and reliable.

6. It is equipped with temperature display and temperature control system according to user's needs, which can be used with axial flow fan.
